Perishable Tooling for High-Volume, High-Reliability Production
The Most Relied-On Perishable Tooling for Wire Harness Manufacturers
Perishable tooling is one of Diamond Die’s most requested and relied-on services. We engineer and manufacture high-precision replacement tooling for repeat use in demanding wire harness, cable assembly, and electrical termination environments, where consistency and uptime are non-negotiable.
Whether you’re supporting a high-volume harness program, maintaining legacy tooling, or replacing worn components across multiple lines, our perishable tooling is built to deliver the same quality crimp, cut, or form, part after part, run after run.
Repeatable Performance For
High-Volume Production
Every tool is designed to maintain accuracy, alignment, and surface finish over its full-service life.
OEM-Level Precision
OEM-level tolerances or better
Advanced Machining
Precision grinding, EDM, and machining
Wear-Resistant Materials
Materials selected for wear resistance and stability
Predictable Replacement
Engineered for predictable replacement cycles
Perishable Tooling Lead Times That
Match Production Reality
When tooling wears out, you can’t wait months.
- Typical lead times: 3–4 weeks
- Rush options for a premium are available for critical situations
- Stocking agreements for same-day / next-day shipment
- Priority scheduling for repeat and perishable tooling programs
When Prints Don’t Exist,
We Reverse Engineer
Many customers rely on Diamond Die to replace tooling with no documentation.
- Send us your worn or damaged tool
- We reverse engineer, validate, and reproduce it
- Legacy tools can be modernized or replicated to current standards
Ideal Applications

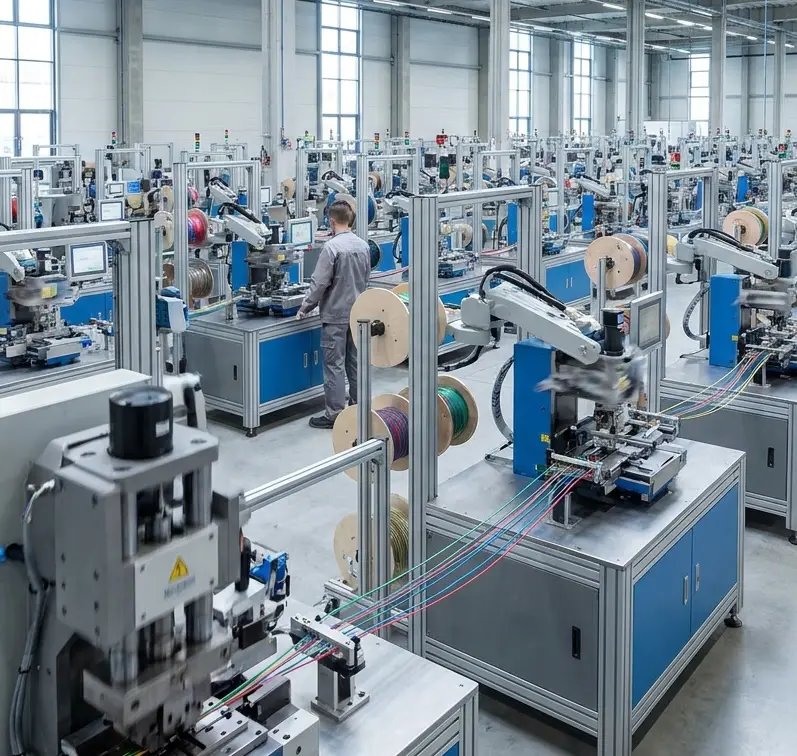

- Wire harness manufacturing
- Cable assembly
- Electrical termination
- OEM wire harness programs
- High-volume repeat crimping or cutting operations
If you’re not sure exactly what you need, that’s okay. Share your current tooling, prints, or photos and our team will help you confirm the right replacement approach and turnaround based on your production requirements.

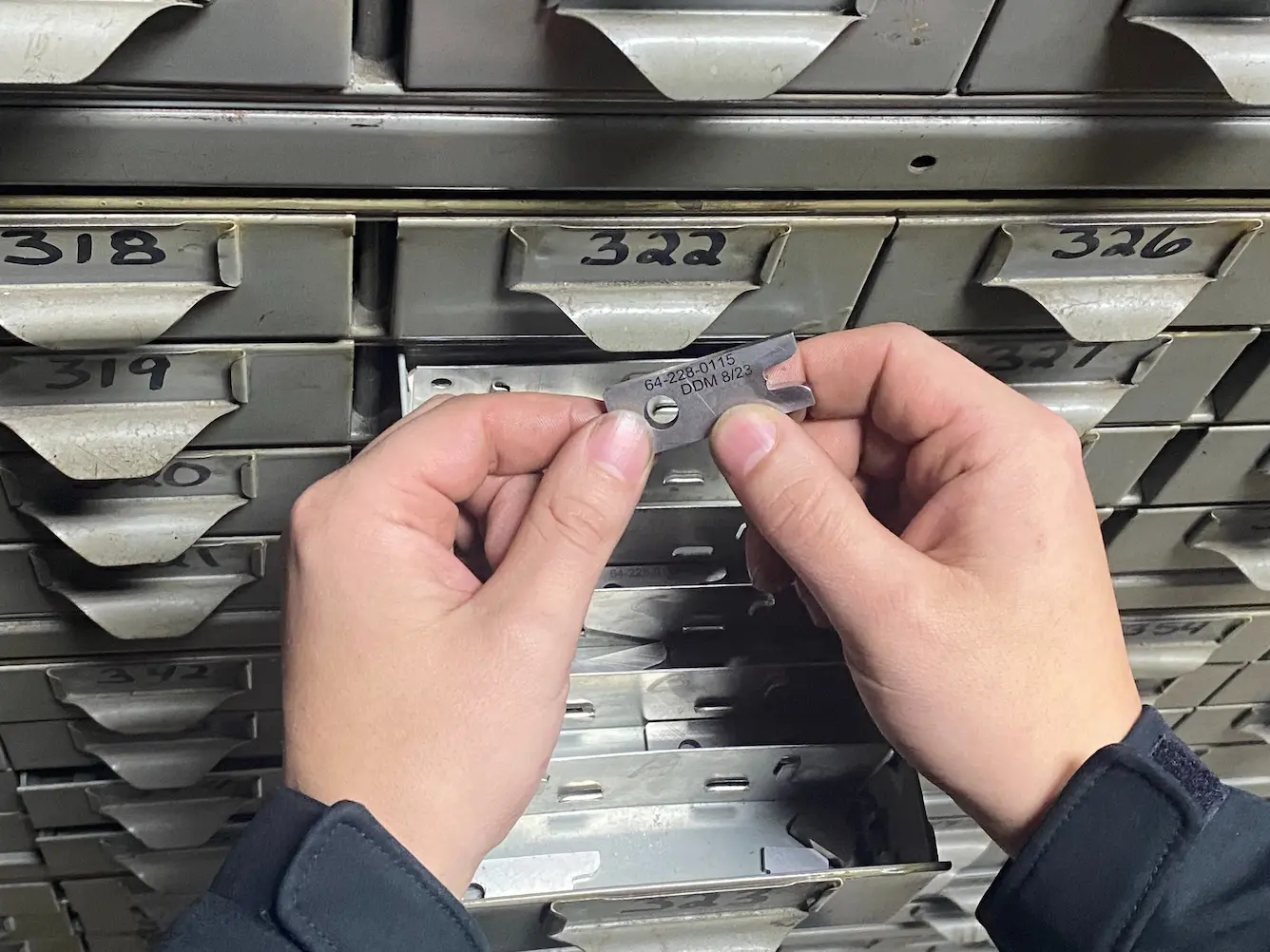

Stocking Agreements for Same-Day Perishable Tooling Replacement
- We build extra units and hold them in inventory for you
- Ships same-day or next-day from our Clinton Township facility
- Stock refills automatically based on your usage
- Eliminates lead time on your most-replaced components
Built for Repeat Replacement &
High-Volume Production
We also keep your specifications, drawings, and production details on file, so when you need a repeat order, we can move straight into production without restarting the engineering process.
- Tooling engineered for the wear profiles and tolerances of high-volume production
- Predictable service life and consistent crimp, cut, or form quality across runs
- Specifications kept on file for fast repeat orders
- Priority scheduling for repeat and perishable tooling customers is available for a fee
What to Know About Our Perishable Tooling Service
What is perishable tooling?
Perishable tooling is precision tooling that wears down over time from repeated use in manufacturing. In wire harness, cable assembly, and electrical termination operations, perishable tooling includes the punches, anvils, cutters, and die inserts that contact the wire or terminal during each crimping or cutting cycle.
How often does perishable tooling need to be replaced?
Replacement intervals depend on your wire gauge, terminal type, production volume, and operating conditions. For high-volume operations, replacement is typically planned on a recurring cadence to avoid unplanned downtime.
What is the typical lead time for perishable tooling?
Standard lead time is 3 to 4 weeks. Rush options are available for critical situations, and customers in a stocking agreement can receive replacements same-day or next-day.
What materials do you use for perishable tooling?
We use tool steels like A2 and S7, selected for wear resistance, dimensional stability, and long service life under high-volume production conditions.
Can you replace perishable tooling without drawings or specs?
Yes. If prints don’t exist or your current supplier is no longer available, we reverse engineer the part from your existing tool and rebuild it to OEM standards.
What is a stocking agreement and who qualifies?
A stocking agreement is a program where we manufacture and hold inventory of your most-replaced tooling, ready to ship same-day or next-day when you need it. Qualifying customers typically have predictable usage patterns and high-volume production. Contact us to discuss whether your operation is a fit.
