Reverse Engineering Services

Get Back Up & Running Faster

Where Most New Customers Start. When tooling fails or prints don’t exist, reverse engineering is the fastest way to get a working replacement in your hands. Send us your worn or damaged part, and we’ll measure, model, and rebuild it to OEM standards. No drawings, specs, or long quote cycles required.

4 Week Turnaround | ±0.0001” Measurement Accuracy | The First Step Starts Here

Keyence precision measurement scan during tooling reverse engineering process

The Fastest Way to Replace a Tool You Don’t Have Prints For

Most suppliers take weeks just to quote. Diamond Die delivers a fully engineered solution and delivers the product within 4 weeks. One week for reverse engineering and three weeks for production.

Our process is simple, fast, and reliable:

  1. Send us your worn or damaged part. An applicator component, piece of perishable tooling, anything you need replicated or improved.
  2. We reverse engineer it within one week. Precision measurement techniques and CAD modeling is used to recreate the design. Diamond Die then uses wire EDM or precision machining processes to recreate the part to exacting OEM standards.
  3. You receive a detailed quote within one week of us receiving your part. No delays or weeks of back-and-forth trying to figure things out.
  4. Production begins immediately. Once you approve, we move into machining. Most tooling is completed within three weeks.
  5. Total turnaround: finished part in under one month.
Send Us Your Part

Why Reverse Engineer with Diamond Die?

Reverse engineering is often the entry point for long-term customers because:

  • It requires no prints, drawings, or specs.
  • It solves urgent problems fast.
  • It shows our speed and precision immediately.
  • It gives customers confidence to move forward with larger tooling needs.
  • It reduces risk. Our clients receive and validate the first tool before committing to more detailed projects going forward.
Connect With Our Team

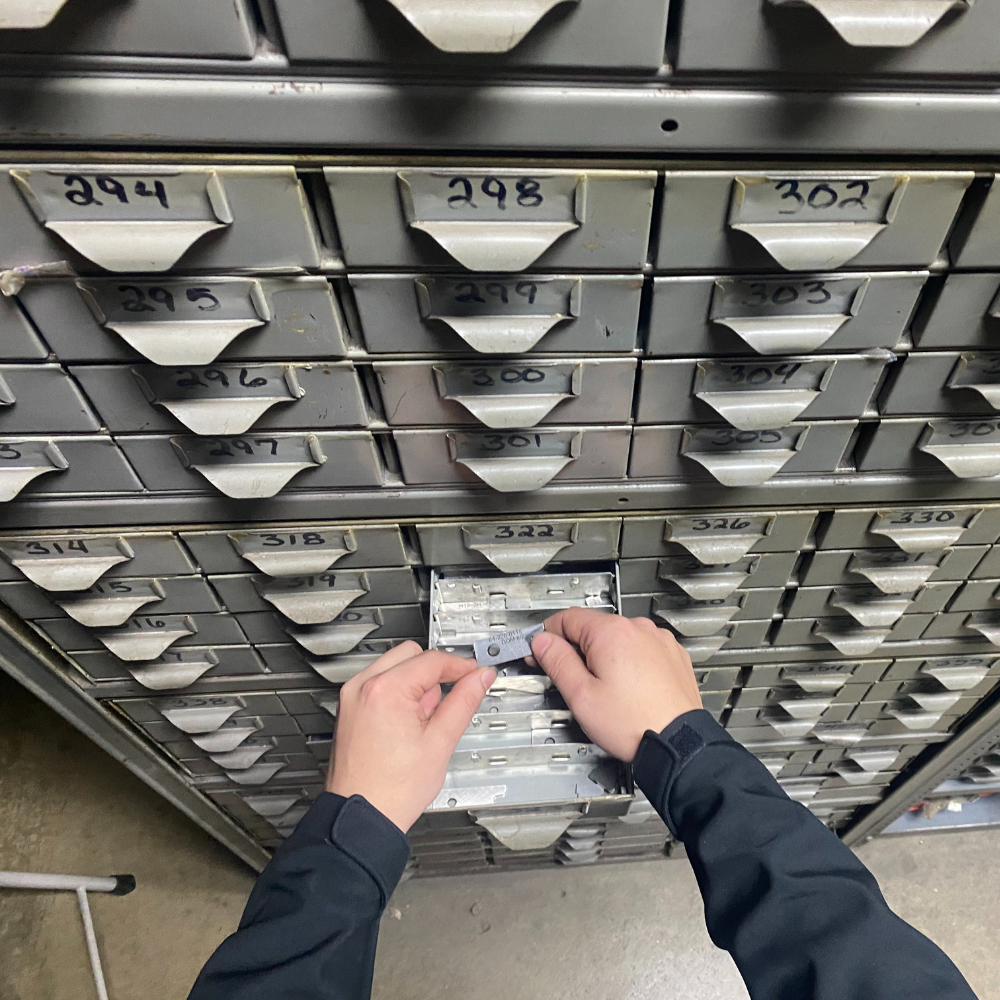

Stocking Agreements for Reverse Engineered Wire Harness Tooling

Once we reverse engineer and reproduce your part, Diamond Die can:

  • Manufacture additional units.
  • Hold inventory on your behalf.
  • Ship within 24-hours.
  • Refill stock as needed.
  • Ensure replacements are always available.

This eliminates downtime, stabilizes production, and provides predictable support for perishable tooling and other frequently replaced components.

A worker's hand is holding metal ring object, a machinery spare part with blurred background of storage shelf. Industrial working scene photo, selective focus.

Reverse Engineering for
Wire Harness & Cable Assembly Manufacturers

Reverse engineering is more than a service; it’s an operational advantage. For manufacturers in wire harness, cable assembly, OEM wire harness, and any industry with high-volume termination needs, it offers:

  • Shorter lead times
  • Immediate production continuity
  • Precise replication of legacy or undocumented parts
  • Long-term reliability through stocking agreements
  • Competitive pricing vs. high costs typical from slow moving large competitors
Upload Part

Explore Additional
Diamond Die Services

Reverse engineering is often the first step. Once your replacement tool is in production, most customers expand into one or more of these services to keep their operations running.

Perishable Tooling

High-precision replacement tooling built for repeat use in high-volume production.

Precision Machining

In-house wire EDM, grinding, and milling for faster delivery and tighter quality control.

Crimping Applicators

Hi-Speed, Hydrofeed, and Heavy-Duty applicators matched to your terminal and production needs.

What to Know About our Reverse Engineering Process

How long does reverse engineering take?

Most projects are completed in under four weeks. One week to reverse engineer and quote, three weeks for production. Rush options are available for critical situations.

Do I need to send drawings or prints?

No. Reverse engineering is designed for situations where prints don’t exist. Send the worn or broken part and we will measure, model, and rebuild it from there.

What kinds of tooling can you reverse engineer?

Crimping applicator components, perishable tooling, custom die sets, and other precision tooling used in wire harness, cable assembly, and electrical termination operations. If you are not sure whether your part qualifies, send a photo and we will confirm.

How accurate is the reproduction?

Parts are machined to OEM tolerances or better, typically within ±0.001 inches or tighter if required, using wire EDM and precision machining processes.

Can you reproduce legacy or discontinued tooling?

Yes. Reverse engineering is often used to replace tooling from suppliers who are no longer in business or for parts where original drawings have been lost.

What happens after the first part is reproduced?

Many customers move into stocking agreements, where we manufacture and hold inventory of frequently replaced parts for same-day or next-day shipment. Reverse engineering is often the first step in a long-term tooling relationship.
