Hi-Speed Applicators for Signal-Level Terminals

Diamond Die & Mold Hi-Speed Applicators are engineered for small-gauge, signal-level terminals where precision, speed, and repeatability are critical. Ideal for automotive, electronics, appliance, and low-current wire harness applications, these applicators deliver consistent terminations at high cycle rates for demanding production environments.

Advantages of Hi-Speed Crimp Applicators for
High-Volume Production

Hi-Speed crimp applicators are specialized tools designed for the rapid and precise application of crimps to signal-level electrical terminals. They integrate with automated terminal crimping presses to deliver consistent, high-quality crimps at production speeds far beyond what manual crimping can achieve, reducing operator fatigue and eliminating the variability that can compromise batch quality.

Increased Efficiency

Hi-Speed applicators operate at significantly faster speeds than manual crimping, boosting production output and helping you meet the most demanding production quotas.

Enhanced Consistency

These applicators deliver precise, repeatable crimps with minimal operator variation, ensuring consistent product quality across large batches.

Reduced Errors

The controlled application process minimizes the risk of human error that can lead to faulty crimps, production stoppages, and downstream quality issues.

Improved Ergonomics

By automating the crimping process, Hi-Speed applicators reduce operator fatigue and potential injuries associated with repetitive hand-crimping tasks.

X6 Press Gen IA

Compatible With Diamond Die & Mold and Competitor Presses

Diamond Die & Mold Hi-Speed crimping applicators are engineered to integrate with our own X6 6-Ton Terminal Crimping Press and can be adapted to fit virtually any type of press, including AMP, MOLEX, KOMAX, SCHAFER, TE, Benchmaster, Mecal, Kenco, Perkins, Artos, and more.

This cross-brand compatibility means you can standardize on Diamond Die & Mold Hi-Speed applicators across production lines without replacing your existing press inventory. Our engineering team can validate compatibility with your current setup before you commit.

Confirm Press Compatibility

Hi-Speed Applicator Configurations for Your Line Layout

Hi-Speed Applicators are available in multiple feed and part-presentation styles to match your press setup and material flow:

Left-to-Right Feed (L to R)

For standard strip progression from left to right.

Right-to-Left Feed (R to L)

For lines configured in the opposite direction.

End Feed

For applications where terminal strip feeds straight in from the back.

Loose Piece

For specific terminals that are not supplied on strip.

Custom Hi-Speed Applicator Design and Engineering

Standard applicators don’t always fit your terminals. Diamond Die & Mold offers custom design and engineering services to create Hi-Speed applicators that match your unique application requirements.

Our engineering team works with you to understand your specific crimping needs, then designs applicators tailored to your terminal type, wire gauge, and crimp style. Whether you’re launching a new product, standardizing across production lines, or replacing a discontinued applicator, we can build the exact configuration you need.

Request Custom Applicator Quote

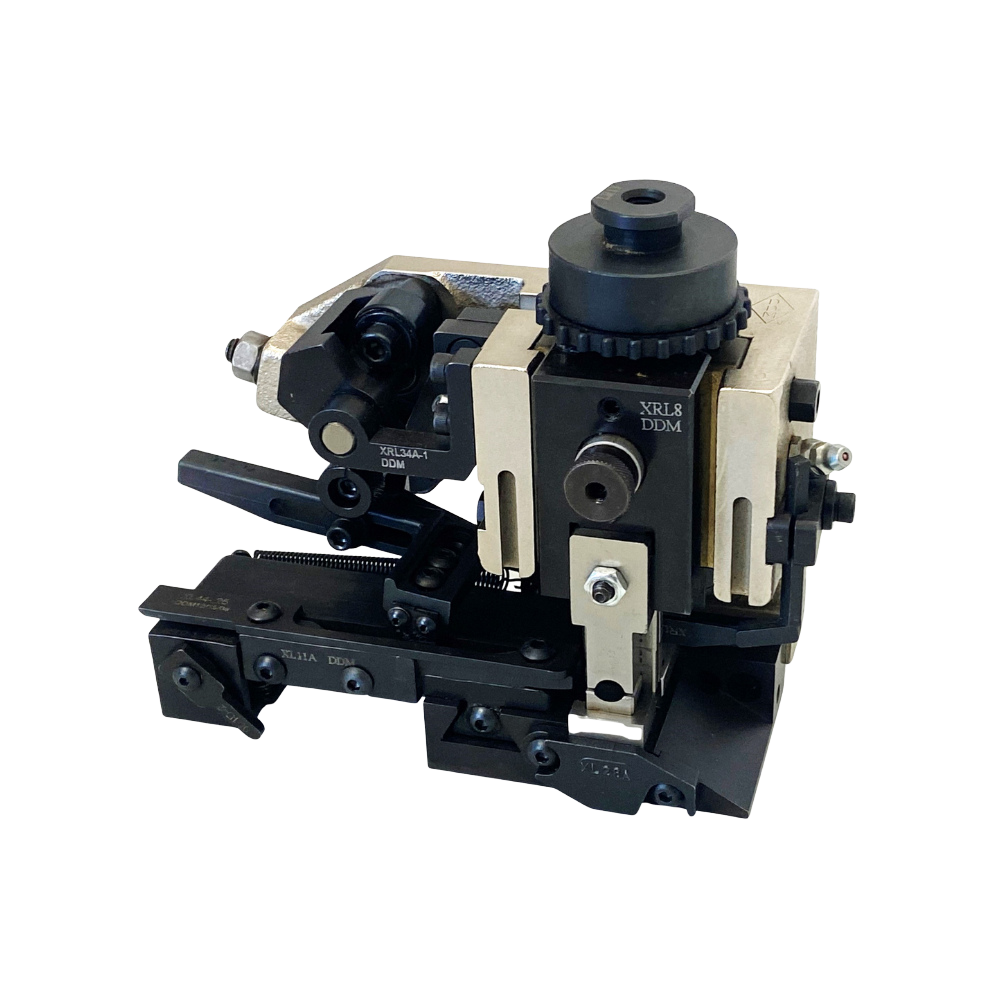

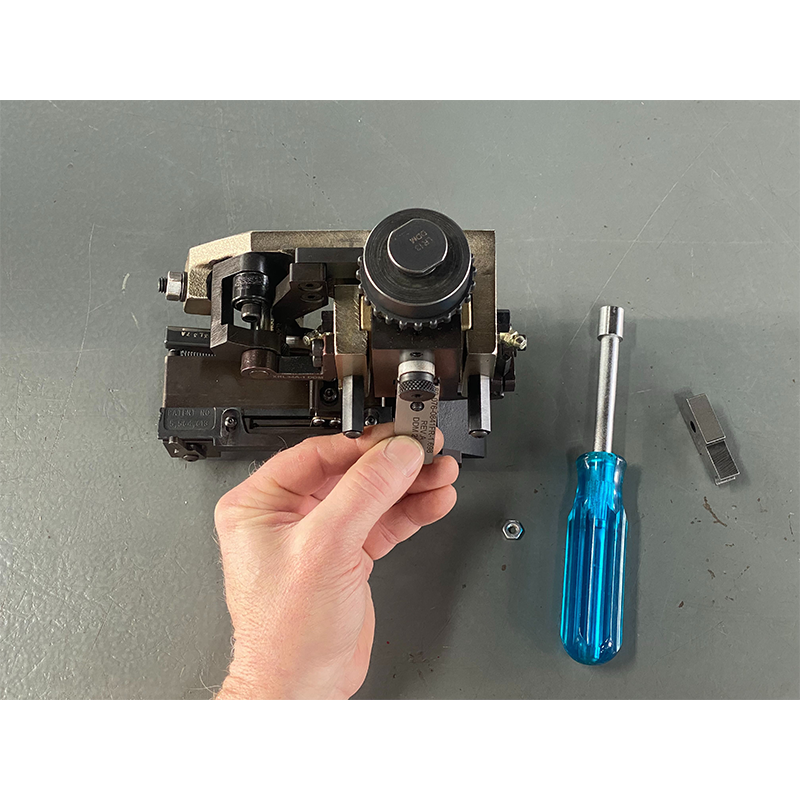

Diamond Die Hi-Speed Signal-Level Terminal Applicator

Need Help Choosing
the Right Feed Configuration?

Tell us about your terminals, wire sizes, and press setup, and we’ll help you confirm the best Hi-Speed applicator configuration for your line.

Discuss Hi-Speed Configuration

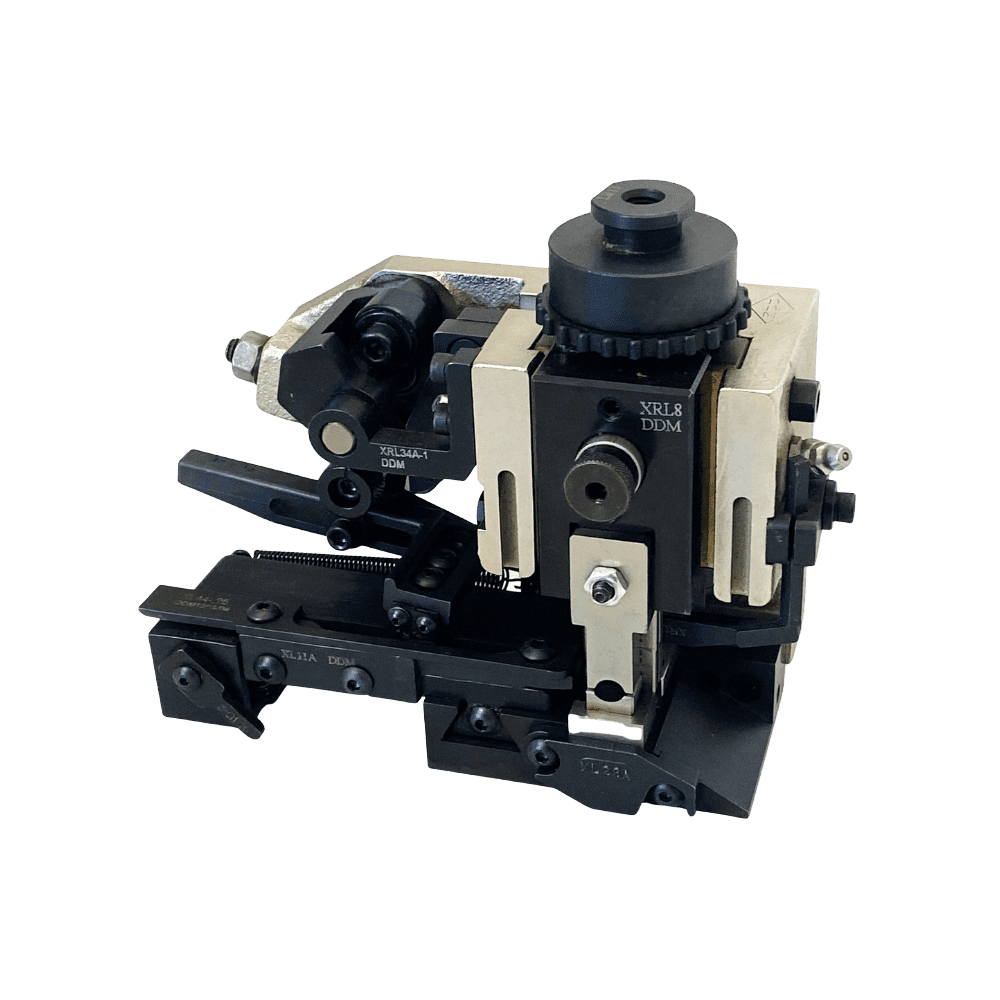

X6 Press Gen IA

Designed for Accuracy and Uptime in High-Speed Wire Harness Production

  • Stable, repeatable crimp height
  • Fine-tuning of crimp force and height parameters
  • Smooth feed and strip control
  • Quick-change setup for terminal and wire changes
  • Interchangeable die sets for fast transitions
  • Engineered for long life under high-speed operation
  • Custom-designed for specific terminal types, wire gauges, and crimp styles

Typical Use Cases

  • Signal-level connections
  • Electronics and control circuits
  • Automotive sensor wiring
  • Low-current harnesses and modules
Download Hi-Speed Applicator Brochure

Full-Cycle Technical Support for Your Hi-Speed Applicators

Beyond delivering the applicator, our team supports you throughout the life cycle of your equipment. Our engineers provide technical guidance during setup and integration, help troubleshoot production issues, and can supply replacement tooling and components as needed.

For customers with older or discontinued Hi-Speed applicators from any manufacturer, our reverse engineering service can replicate or repair worn components to keep your production running.

What to Know About Hi-Speed Crimp Applicators

What is a Hi-Speed crimp applicator?

A Hi-Speed crimp applicator is a specialized tool for the rapid, precise application of crimps to signal-level electrical terminals. It integrates with terminal crimping presses to deliver consistent, high-quality crimps at industry-leading speeds, replacing manual crimping in high-volume production.

Which presses are compatible with Diamond Die & Mold Hi-Speed applicators?

Our Hi-Speed applicators are engineered to fit our own X6 6-Ton Terminal Crimping Press and can be adapted to work with AMP, MOLEX, KOMAX, SCHAFER, TE, Benchmaster, Mecal, Kenco, Perkins, Artos, and most other industry-standard presses.

Can you build a custom Hi-Speed applicator for my specific terminal?

Yes. Our engineering team designs custom Hi-Speed applicators to match your specific terminal type, wire gauge, and crimp geometry. Send us your terminal and wire specs to get started.

What feed configurations are available?

Hi-Speed applicators are available in Left-to-Right, Right-to-Left, End Feed, and Loose Piece configurations to match your production line layout and material flow.

What is the difference between Hi-Speed and Hydrofeed applicators?

Hi-Speed applicators are built for signal-level terminals in high-volume, high-speed production environments. Hydrofeed applicators are mid-range applicators built for controlled feed and consistent performance across a broader range of terminal sizes. Both integrate with our X6 6-Ton Crimping Press.

How do Hi-Speed applicators compare to hand crimping tools?

Hi-Speed applicators operate at significantly faster speeds than manual hand crimping, deliver more consistent crimps across large batches, reduce operator fatigue, and eliminate the variability that comes from hand tool operation. Hand tools remain the right choice for prototyping, low-volume work, or field service. For production runs, Hi-Speed applicators are the correct tool.

Do you offer replacement parts or repair for older Hi-Speed applicators?

Yes. Through our reverse engineering service, we can rebuild worn or discontinued Hi-Speed applicator components, even without original drawings. Send us the part and we’ll measure, model, and reproduce what you need.

How long does it take to receive a custom Hi-Speed applicator?

Lead times vary based on complexity and current production schedule. Most custom applicators are quoted within 2 to 7 business days of receiving your specs. Contact us with your project details to receive a specific timeline.
