Heavy Duty Applicators for Large, High-Force Terminations

Diamond Die Heavy Duty Applicators are designed for large-format terminals, battery cables, EV cables, and other high-current, high-force terminations. Built to withstand demanding loads and larger conductor sizes, these applicators provide the stability and force needed for critical power connections.

HD R to L

Configured for Large Cable and High-Force Applications

Heavy Duty Applicators can be configured in:

  • Left-to-Right Feed (L to R)
  • Right-to-Left Feed (R to L)
  • End Feed
  • Loose Piece handling

These options allow integration with both existing 6-ton and 22-ton presses and new installations.

Download Heavy Duty Applicator Brochure

Need Help Matching the
Right Press and Applicator?

We’ll help you confirm the best Heavy Duty configuration for your cable size, terminals, and press setup.

Talk with Engineering

Built for Strength, Safety, and Longevity

  • Robust frames and components to handle higher forces
  • Designed for large-gauge cable and heavy terminals
  • Compatible with Diamond Die 22-ton presses
  • Engineered to maintain alignment and crimp integrity over long production runs

Ideal Applications

  • EV battery and high-voltage cables
  • Large power distribution cables
  • Heavy equipment and industrial power harnesses
  • High-current OEM and aftermarket harnesses

Not sure about what you need, we’ll help you identify the right solution

Request A Quote

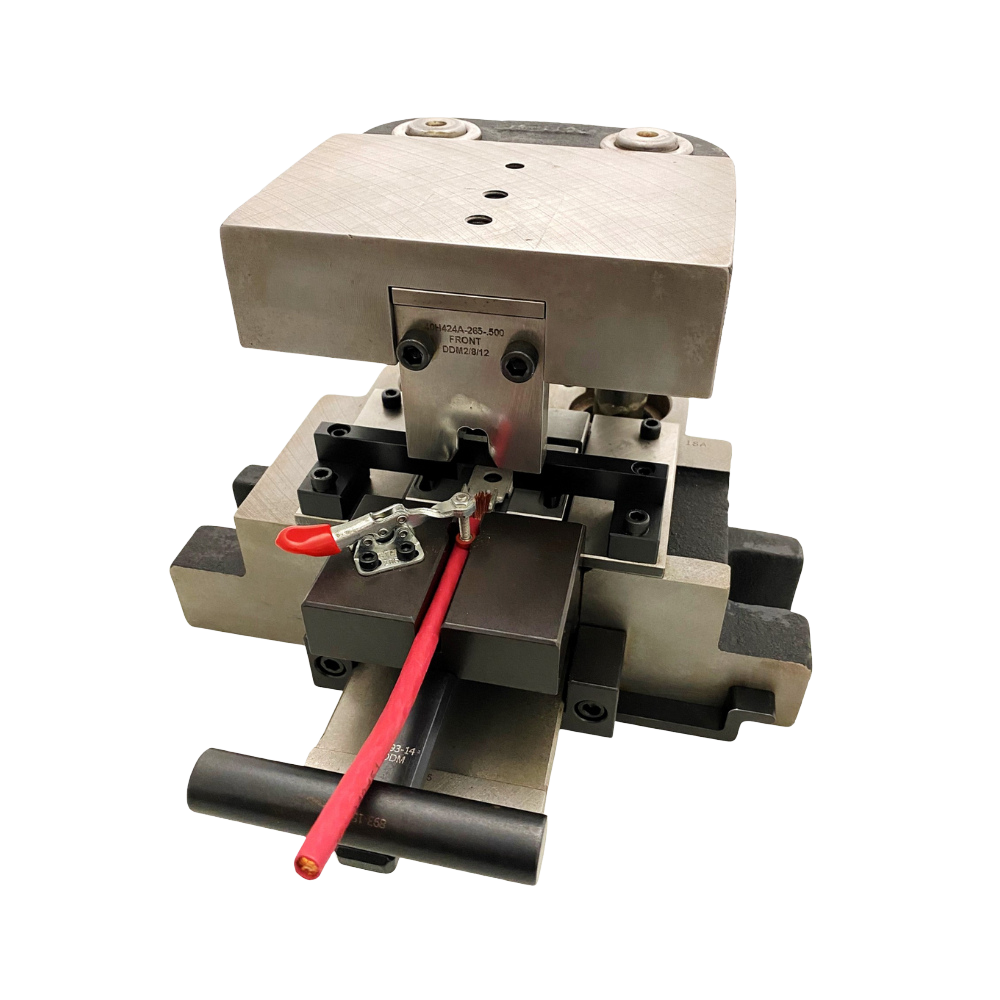

HD
